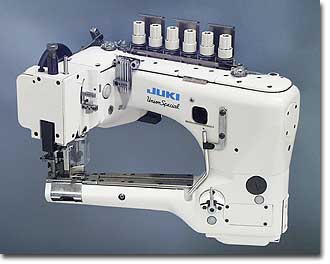

36200 Series

Feed-Off-The-Arm FlatSeamer
With Top and Bottom Material trimming knives
Top & Bottom Coverstitch 607 type
4 Needles-1 Looper-1Coverthread
(6 threads)
Bottom Coverstitch 607 mod type
4 Needles-1 Looper (5 threads)
Generally used only with tape on top


Speed : 4200 rpm (Max)

Needle Spacing (Gauge) : 5.2mm and 6.0mm

Stitch Range : 1.6-2.5mm, 10 to 16 SPI
Standard 12 (Most Common)

Feed Type : Tandem Differential (Ratio 1 to1.8)
Operator Controlled—Dial Adjust

Material : Light to Medium Heavy
Knits, Fleece, PolarFleece, Wetsuits, etc.

Tabling Options : P - Pedestal
T - Table Mounted (Gear box or Solid Base)

Butt Seam FSa-1 :
Material may overlap approximately. 0.5mm to 1.0mm

Lap Seam LSa-1 :
Material overlapped to 2nd & 4th needles

Taping & Joining LSz mod. :
Taping fronts of Men’s & Women’s Briefs
