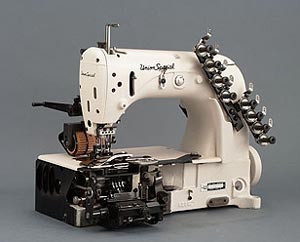

Flatbed Design

With Close Coupled Puller
Top Driven Roller – Lower Idler Roller
2 1/4” wide, except J-12 - 3” wide

Multi-Needle Double-Locked Stitch 401

4 Needles 4 Loopers
9 Needles 9 Loopers
2 Needles 12 Loopers

Looper-in-line-of-feed

Speed

4000 - 9 & 12 Needle Series
4300 - 4 Needle with Metering Device
4800 - 4 Needle for all others

Stitch Range

5 ½-17 SPI, 1.5-4.6mm
Depending on Style & Application

Feed Type

Plain Feed
Top Driven Close Coupled Puller

Roller Types

Toothed Steel
Smooth Rubber
Toothed Bakelite

Material

Light to Heavy (6-16oz)
Woven & Knits

Tabling Options

Table Mount (Most Common)
Pedestal

Motor

1/2 HP Clutch Type
1/2 HP Needle Positioner Type
Thread Stand only available in 4 Needle Series

4 Needle Elastic Attaching LSk-4 mod

Continuous Elastic From Bottom
With & Without Folder
With & Without Elastic Metering Device

4 Needle Waistbanding B Sc-4

Continuous Waistbanding From Roll
With Right Angle Binder

9 & 12 Needle Multi-Application SSa

Without Attachments
Without Thread Stand
