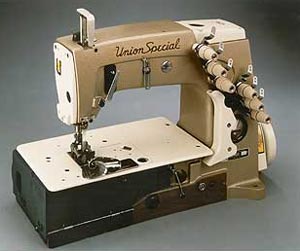

Flatbed Design

Chainstitch
Medium Capacity
With Indexed Thread Ratio Control
1 needle
2 Thread

Double Locked Stitch Type 40

Specifications

Speed

6000 rpm (Max) AV & V Series
6500 rpm (Max) All Others

Stitch Range

6-12 SPI, 1.6-4.2mm
Depending on Style & Application

Feed Type : Plain Feed

Material

Light to Medium Heavy
Woven & Knits

Tabling Options

Table Mount (Most Common)
Pedestal

Motor

1/2 HP Clutch Type
1/2 HP Needle Positioner Type

General Seaming SSa-1

Flat - Standard Hinged Presser Foot
Flat - “Feeding Foot” Presser Foot
Yielding - “Feeding Foot” Presser Foot
With Edge Guide

General Seaming SSa-1 w/ Manual Back Tack

Flat - Standard Hinged Presser Foot
“Four Motion” Retainer for Small Radius turns
With Edge Guide

Glove Closing SSa-1

Short Toe Flat Presser Foot
“Four Motion” Retainer for Small Radius Turns
With Edge Guide
