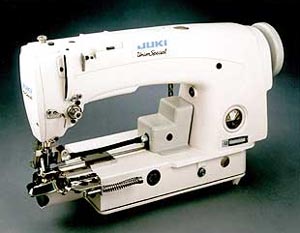

Cylinder Bed

7 ½” – 190.5mm Cylinder
1 Needle Lockstitch Type 301
Continuous Top & Bottom Roller Feed

Needle Feed

Speed

5200 rpm (Max)

Stitch Range

6-12 SPI, 2.1mm-4.5mm
Stitch Gear & Needle Feed SPI Controlled

Feed Type

Continuous Roller Top & Bottom
Needle Feed

Material

Light to Extra Heavy (6-16oz)
Denim, Cotton, Canvas, etc.

Tabling Options

Table Mount
Pedestal (Most Common)

Motor

1/2 HP Clutch Type
1/2 HP Needle Positioner Type

Waistband Stitching LSe-2 (mod)

Top Stitching Waistbands
2nd Part of 2 Part Operation
Sews at Edge or 1/16” from Edge of Waistband
Fixed PF Guides
Light to medium Weight (6-11oz)
Work Support Plate

Leg Hemming EFb-1 (inv)

Light to Medium Weight (6-11oz)
Without Folder – Turn Hem by Hand
Adjustable PF Guides

Leg Hemming EFb-1 (inv)

Heavy Weight (12-16oz)
With Hemming Folder
With & Without Large Hook
(Hook size not different only basket & bobbin size
