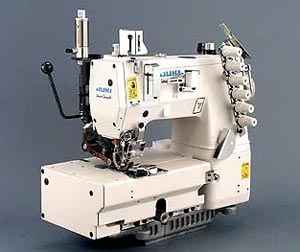

Flatbed
Bottom Coverstitch

406 Type-(2 needles, 1 Looper, 3 Thds)
407 Type-(3 needles, 1 looper, 4 Thds)

Top & Bottom Coverstitch

602 Type-(2 needles, 1 looper, 1 cover, 4 Thds)
605 Type-(3 needles, 1 looper, 1 cover, 5 Thds)

Flatbed

Approximate 8" underarm space

Speed

5500 rpm - Material Trimming Knives
6000 rpm - Pullers
6500 rpm - All Others

Material

Light to Medium Heavy
Knits, Fleece, PolarFleece, Swimwear, etc.

Stitch Range

1.6-3.2mm, 8-16 SPI
Depends on Machine Group & Stitch Tongue
Independently Driven Rear Needle Guard
(No need to adjust when Stitch Length is changed)

Tabling Options

Semi-Submerged Table
Fully Submerged Table

Motor

1/2 HP Clutch Type - Non Klipp-It
1/2 HP Needle Positioner - Klipp-It

C Series - Collarette Attaching

E Series - Attaching Continuous Elastic

With Material Trimming Knives
With & Without Puller
With & Without Upper Metering Device

H Series - Hemming

L Series - Lap Seaming

U Series - Universal Styles

Hemming
Coverseaming
Collarette Attaching
